Routing - Account Router Guide Follow
Contents:
- Overview
- General FlowBuilder Actions
- Accessing FlowBuilder
- Adding & Editing Graphs
- Deploying a Graph
- General Node Actions
- Node Colors
- Multi-Node Actions & Shortcuts
- Node Guides
- Account Routing Templates
Overview
LeanData’s Account Router gives organizations a visual interface (FlowBuilder) to create and manage Account routing logic, ensuring that Accounts get assigned to the appropriate owner automatically.
In addition to assigning Accounts to the appropriate owners, Account Router offers you powerful actions such as task creation, notifications, round-robin functionality, and more.
General FlowBuilder Actions
The following guide contains a high-level overview of how Account Router works and how you can set up your Account Router in the LeanData App.
Accessing FlowBuilder
- Click on the LeanData tab from SalesForce.
- Within LeanData click Routing → Accounts → FlowBuilder
Adding & Editing Graphs

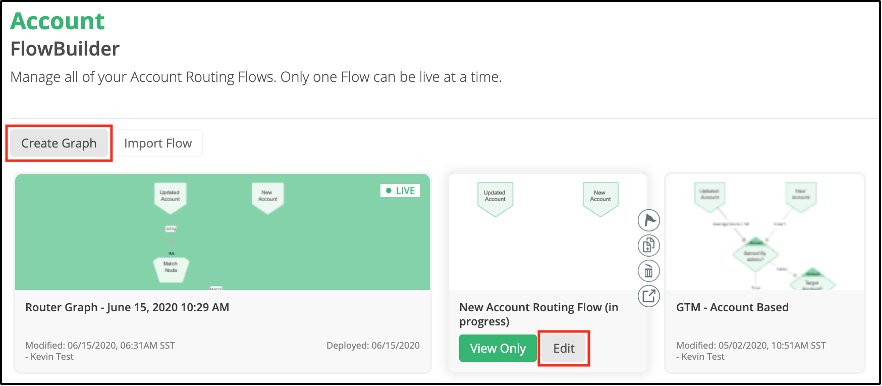

You can create a new graph by clicking the Create Graph button on the main FlowBuilder page, or you can edit an existing graph by hovering over its tile and clicking the Edit button that appears on the tile.
Please Note: The Graph Editor opens a new graph or an existing one in a new browser tab to give you a full-screen view of your graph
Graph Locking

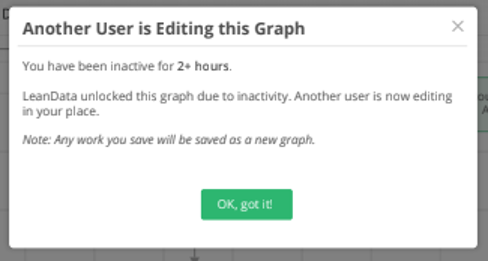

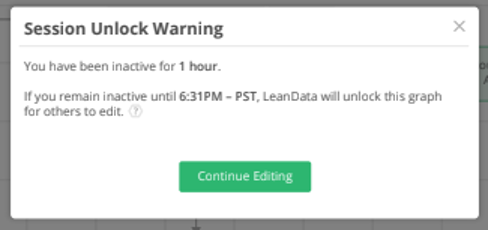

When you have a graph open for editing, the graph will be locked to others so that two people cannot edit a graph at the same time. If there is no activity for 2 hours on the locked graph, it will automatically be released so that it can be edited, by anyone with access to the graph.
Example: Admin Melissa opens a graph to edit, but gets pulled into back-to-back meetings and activities before finishing their work. But Admin John needs to make edits! The graph will become auto-unlocked for John to modify after Melissa has been inactive for two hours.
Deploying a Graph

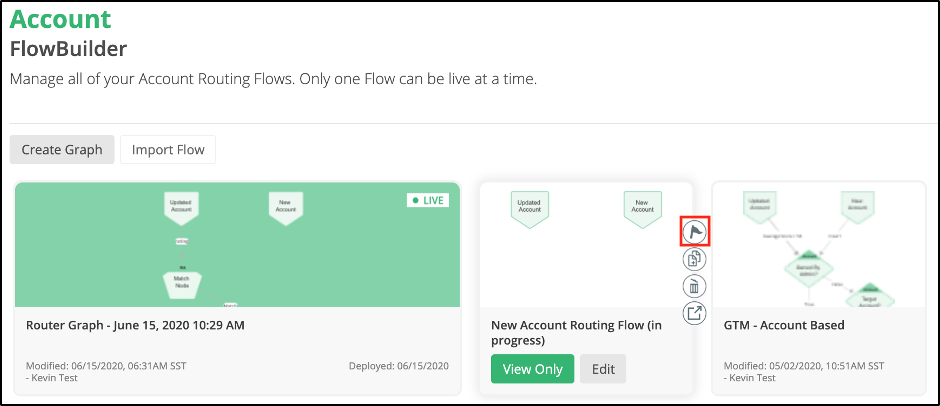

To deploy a graph, hover over the graph you wish to deploy, then select the flag icon to deploy that graph.

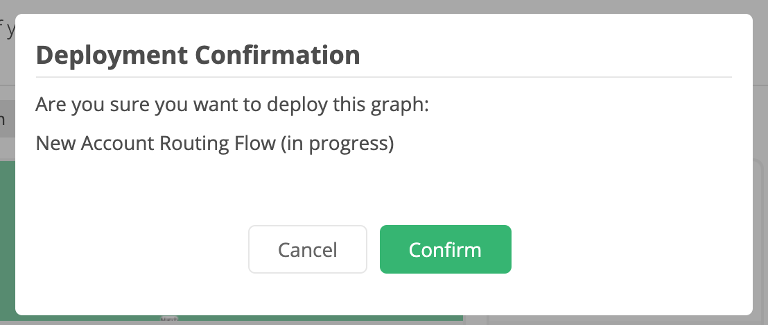

You will get a Deployment Confirmation. Select Confirm to deploy the deployment. If you already had a graph deployed, it will automatically be deactivated.
Please Note: Only valid graphs (graphs without errors) are eligible for deployment

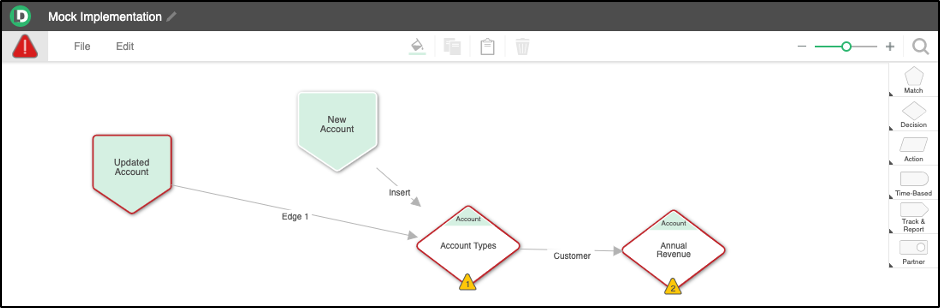

When you open a graph, LeanData will validate the graph and if your graph is showing validation errors, the nodes with issues will be outlined in red.

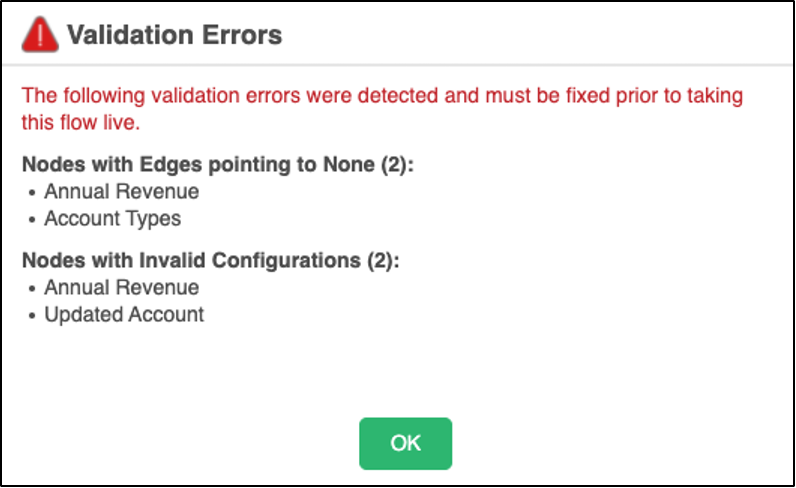

Clicking on the red triangle in the upper left corner of the Graph Editor will open a pop-up window with a list of the validation issues that must be resolved before deploying the graph.
General Node Actions
Once within a graph, you can customize your Account routing logic utilizing nodes that will contain the different matching functions, decision criteria, or actions you wish to take.
Adding Nodes

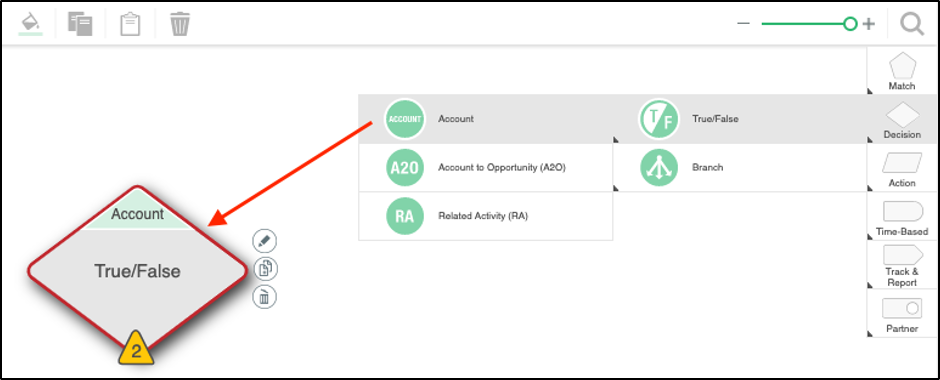

Once within a graph, to add a node, use the node bar in the top right corner and hover over the node options and either click on the node you wish to add or drag it into the main area.
Deleting Nodes
To delete a node, single click on the node you wish to delete, then click the Garbage can icon to delete the node.

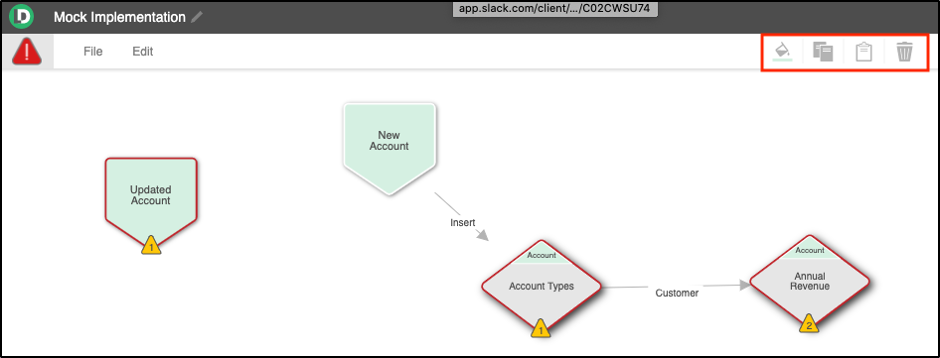

You can also Delete nodes using the Menu Bar at the top of the page by selecting the node(s) you wish to delete, and then either hitting the Trash icon or selecting Delete from the Edit menu at the top. You can also use the DELETE key on your keyboard
Editing Nodes
To edit a node, single-click on the node you wish to edit, then select the Pencil icon to edit the node or you can double-click on the node itself to edit the conditions within the node.
Copying Nodes

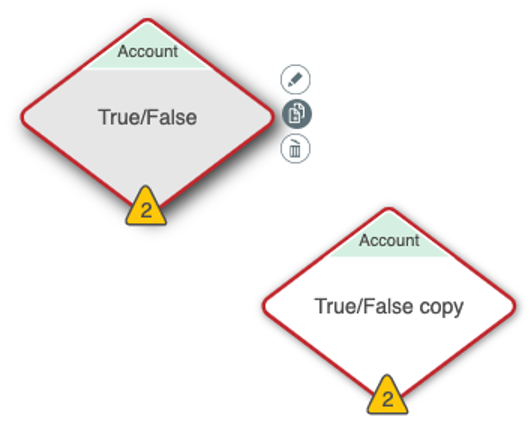

To copy a node, single click on the node you wish to copy, then select the Copy icon to create a copy of that node. A copy of your node, including the conditions within it, will appear.
You can also use the icons in the menu bar at the top of the page or the options in the Edit menu, as well as keyboard shortcuts to Copy (CTRL/CMD+C) and Paste (CTRL/CMD+V) the node(s) you wish to duplicate.
You can also copy nodes to be pasted into other graphs. Click on the desired node to select it, then select Copy from the Edit Menu. Open the target graph and select Paste from the Edit menu to paste the copied nodes into the graph.
Connecting Nodes
You can Connect nodes in one of several ways:
1. Open a node and select the Target through the dropdown next to the condition or outcome you wish to assign. Use the search functionality to narrow the scope of the results. If you want Lead processing to stop at your selected node, simply select End of Flow.
Alternatively you can click the Stop Sign icon to set a particular edge to End of Flow, or click the crosshairs icon to assign that edge visually on the main flowchart graph view by clicking the node to which you would like that edge to proceed.

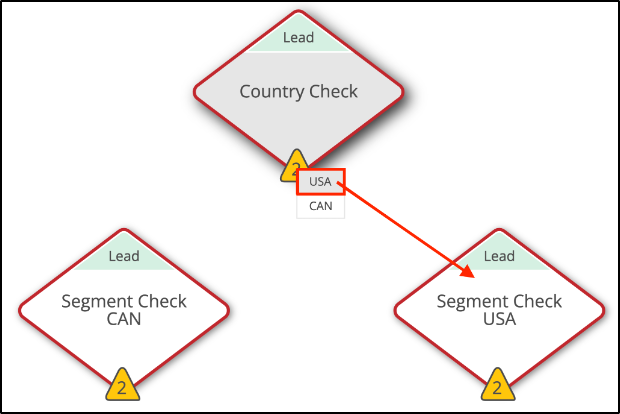

2. If you are already in the main flowchart graph view, you can click on the yellow triangle and drag the edge you wish to direct to the next node to which you would like that edge to proceed.
Node Colors
You can give your nodes different colors to help you organize your Routing graph, and more easily delineate different sections or functions within your Routing Graph. The color of a node will have no bearing on the functionality of the node and is only used to visibly distinguish nodes.
To change the color of new nodes you create, select your desired color from the node color palette at the top of the page.
New nodes will have the selected color until you select a different color from the palette. Copied nodes will keep the color of the original node.
To change the color of existing nodes on your graph, select the node(s) you would like to change, then pick the desired color from the palette, and the selected nodes will change to the selected color.
Multi-Node Actions & Shortcuts
If you need to select multiple specific nodes, you can hold Cmd (Mac) or Ctrl (PC) and then click on the different nodes you wish to select.
Alternatively you can also select multiple nodes by holding down the Shift key and dragging your cursor to highlight an entire area. All nodes that fall into the highlighted area will be selected.Once you have selected your desired nodes, you can either use system Copy (Cmd/Ctrl+C), Paste (Cmd/Ctrl+V), or Delete (Delete Key) shortcuts, or you can use the buttons in the menu at the top of your screen, to perform the desired actions.
Node Guides
There are many nodes that are available to you in LeanData Router. For more detailed information on these nodes and how they function please see our Node Guides in the LeanData Help Center.
Account Routing Templates
Many Routing Templates are available to help you get started. You can download a template and then import it into your LeanData instance and modify as needed. Please see the Account Routing Graph Library page to get started.
For additional help and assistance, please submit a ticket to LeanData Support.
